Brand Name : | WBD |
Model Number : | I004A125TPRPB1 |
Certification : | ISO9001 |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union, D/P, D/A, |
Supply Ability : | 80000pcs per month |
Delivery Time : | 7-15days |

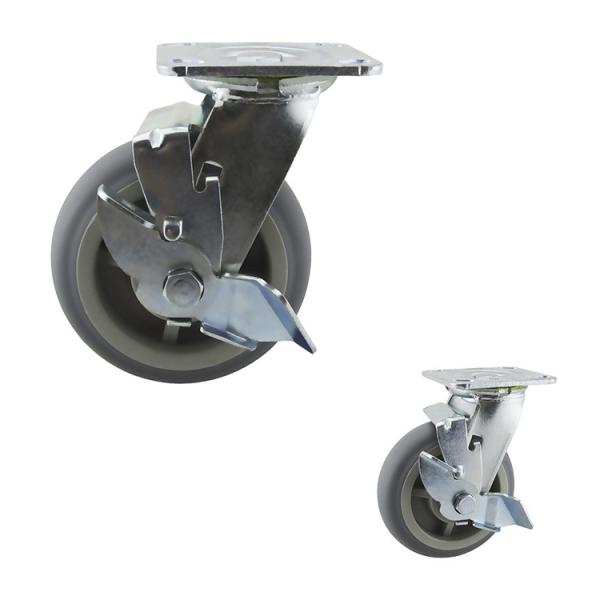

WBD Supplys 5x2 inch 506LBS Capacity Gray Swivel Lock TPR Top Plate
Heavy Duty Casters
Description:
This caster featuring a 5" x 2" gray TPR wheel is a top of the line
caster choice for those who need a durable, quiet caster. These 2"
wide caster wheels feature a high quality TPR tread that stores and
exudes energy to reduce vibrations of carts and equipment, offering
a smooth and quiet ride that make it ideal for industrial
environments require low noise. The TPR tread is soft, meaning the
wheel doesn’t damage or mark floors, helping to lower time spent on
floor upkeep. Each TPR heavy duty caster also comes standard with
two sealed precision ball bearing that holds up under frequent
stops and starts and aids in precise maneuverability. With double
ballrace swivel head, they can gain a longer life, save more cost.
Product Specifications:
5 inch swivel side lock heavy duty TPR casters
Model Number | Wheel Diameter/Width MM | Overall Height MM | Plate Size MM | Bolt Hole Distance MM | Bolt Hole Size MM | Bearing Type | Loaded Capacity LBS |
I004A125TPRPB1 | 125x50 | 166 | 115x100 | 85x72 | 20x13 | Ball | 506 |
This caster is made of 7/32" thick cold rolled steel; designed,
formed, and welded for optimal mobility and made to withstand the
rigors and abuse typically seen in Medium duty applications. Double
Ball raceways are standard features; however we also offer a rivet
version & kingpinless version.
Popular applications may include; various carts, trucks, dollies,
racks & equipment, for almost every industry including industrial,
warehousing, hospitality, institutional, food service, food
processing, retail display, and countless other medium duty
applications.
5 inch swivel type heavy duty TPR casters
Model Number | Wheel Diameter/Width MM | Overall Height MM | Plate Size MM | Bolt Hole Distance MM | Bolt Hole Size MM | Bearing Type | Loaded Capacity LBS |
I004A125TPRP | 125x50 | 166 | 115x100 | 85x72 | 20x13 | Ball | 506 |
5 inch fixed type heavy duty TPR casters
Model Number | Wheel Diameter/Width MM | Overall Height MM | Plate Size MM | Bolt Hole Distance MM | Bolt Hole Size MM | Bearing Type | Loaded Capacity LBS |
I004A125TPRPF | 125x50 | 166 | 115x100 | 85x72 | 20x13 | Ball | 506 |
About Us:
FAQ:
Q: What is TPR material?
A: TPR is short for thermoplastic rubber.
Q: Is TPR material environmental friendly?
A: Yes, it.
Q: How did TPR casters protect floor?
A: TPR casters are soft wheels, floors are harder than they, so
they won't do harm to the floors.
![]() |
