300kg Loaded Capacity 4" Phenolic Wheel Black Swivel Lock Heat
Resistant Casters
Phenolic resin wheels are mixed with phenolic resin with macerated
canvas and other compressed materials; These wheels are molded
under high pressure and temperature. Phenolic caster wheels are
recommended for smooth concrete floors and can be used for storage
loads without permanent compression set to the wheel. These
phenolic wheels are highly resistant to oil, grease, gasoline and
mild acids. Phenolic caster wheels will carry loads as great as the
same size Gray Iron Wheel Casters. The wheel tread may show wear from repeated travel over rough
floor surfaces. Phenolic Wheel Casters are one of the most commonly
used casters due to the inexpensive costs and high weight
capacities and durability these type of wheels offer. If your
looking for a true heavy duty caster that wont break the budget buy
phenolic wheel casters from WBD.
Description:

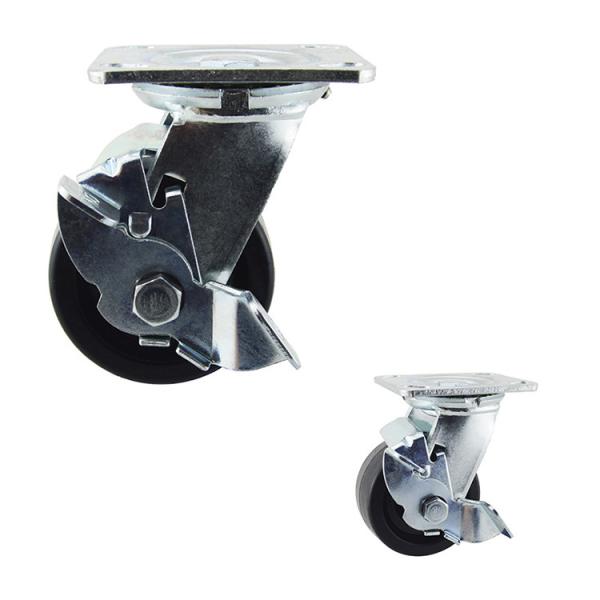

Heavy duty 4" phenolic heat resistant casters with side lock. They
are hard casters, not easy to deform when loaded goods. Heat
resistant casters are not products of a single material. They
usually use different materials and different ratios to achieve
different characteristics. This caster is manufactured by fusing
glass fiber and nylon, etc., and different combinations can achieve
different extreme temperatures. This one can bear -20 to 260℃. If
you need different one, call us.
Product Specifications:
4" swivel side lock heat resistant casters
| Model Number | Wheel Diameter/Width
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I020H100PFPB1 | 100x50 | 142 | 115x100 | 85x72 | 20x13 | Roller Bearing | 300 |
About Us:
FAQ:
Q: Only black color available?
A: No, other color can be customized.
Q: If i want different degree, is that available?
A: Yes, that can happen.
Q: What is your delivery time?
A: Usually within 20 days.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance
will be cleared by T/T or L/C before delivery.
Q: Are samples available?
A: Yes, samples are available at any time, negotiable.
Q: Can i customize my own logo/brand? If i want to make a new type
of caster, is that possible?
A: Yes, my friend. You can print your brand logo on the packing
box, aslo can punching logo on the caster bracket, even produce
your new model of caster with our great professional experience. We
are good at doing the OEM things.
