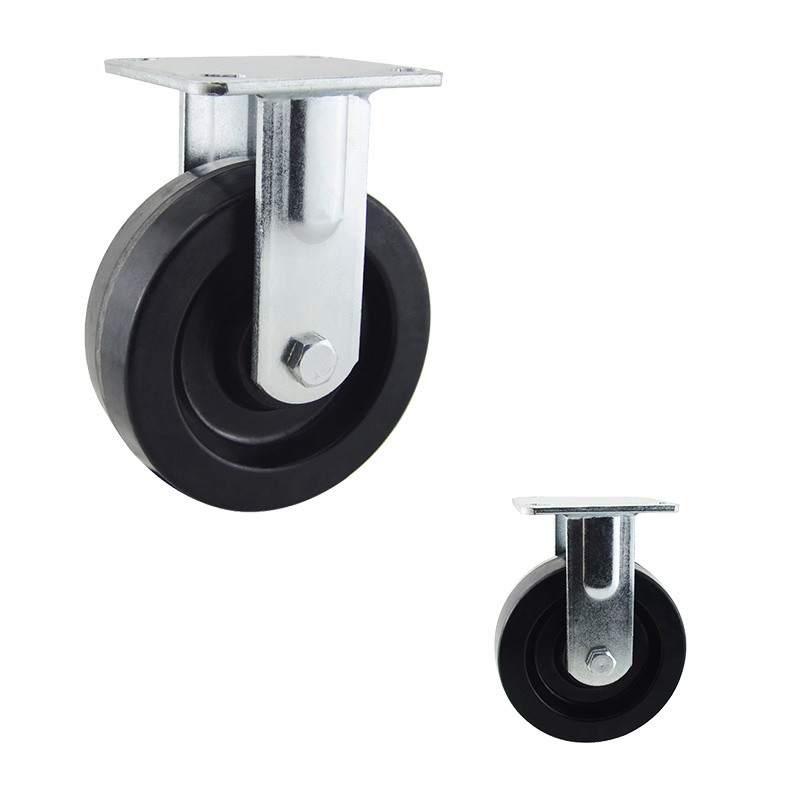

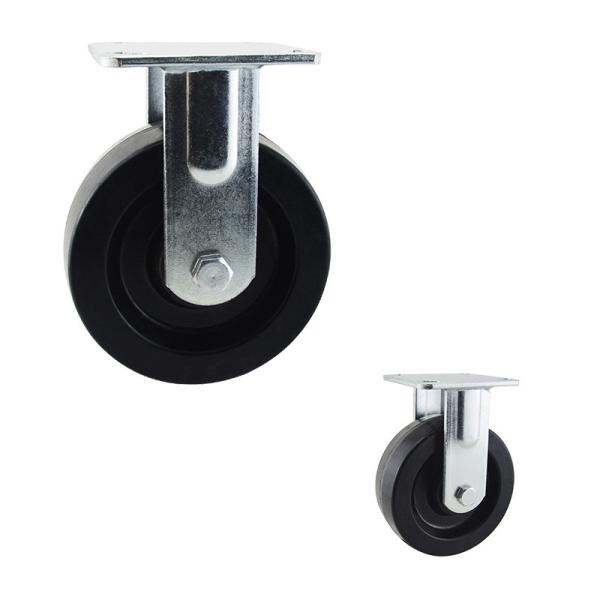

150mm Black Heat Resistant Fixed Wheel 400kg Rigid Oven Casters
In certain industries, high temperature casters are critical. You
will find applications for high-temperature casters in aerospace,
baking, smokehouses, autoclaves, medical environments, and others.
Water is sometimes present in or near high-temperature
applications, and this should factor into your decision when you
are selecting your casters. Common high-temperature caster
materials are high-temp phenolic, cast iron, stainless steel,
nylon, phenolic, epoxy, and others. Your application will dictate
which of these materials are best.
Description:
The 6-inch high temperature resistant rigid casters can be used in
large ovens and can safely last 4 hours at a high temperature of
260 degrees Celsius. The design of solid wheels makes rolling
lighter and more flexible, and at the same time more durable. The
thick brackets welded on both sides provide a solid structural
foundation for the casters.
Product Specifications:
- Wheel material: phenolic resin
- Wheel size: 4 inches, 5 inches, 6 inches, 8 inches
- Wheel diameter: 100, 125, 150, 200 mm
- Wheel width: 50 mm
- Bracket thickness: 5.5 mm
- Top plate size: 115 * 100 mm
- Roof hole spacing: 85 * 72 mm
- Top plate aperture: 20 * 13 mm
- Installation height: 4 inches: 142 mm, 5 inches: 167 mm, 6 inches:
195 mm, 8 inches: 240 mm.
150mm rigid heat resistant casters
| Model Number | Wheel Diameter/Width
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I020H150PFPF | 150x50 | 195 | 115x100 | 85x72 | 20x13 | Roller Bearing | 400 |
About Us:
FAQ:
Q: Can i have other color?
A: Yes, black is the normal one, you can have brown one or other
color too.
Q: Which port does the cargo ship from?
A: Usually Huangpu or Nansha port of Guangzhou.
Q: What is your delivery time?
A: Usually within 20 days.
Q: Do you have other size?
A: Yes, we also have 4 inch, 5 inch and 8 inch wheels.
Q: Are samples available?
A: Yes, samples are negotiable.
Q: Are samples free?
A: That depands, negotiable.
