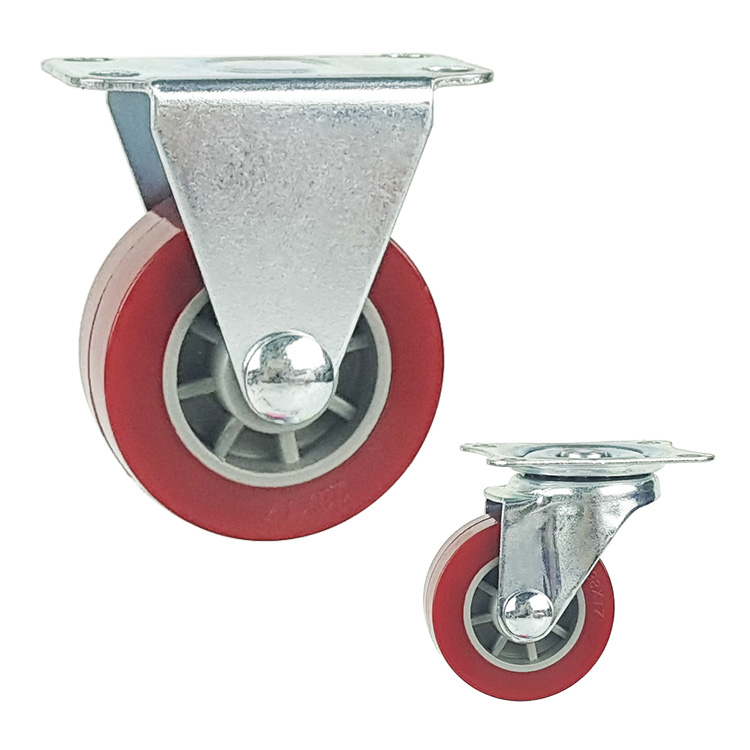

WBD Manufactures 1.5" Rigid Wheels Light Duty Plate Red PU Caster
Wheels For Bed Drawers
Description:
Zinc plated bracket 1.5 inch rigid plate red pu light duty caster
wheel.
Mounting type includes top plate, bolt hole, threaded stem, stem
and grip ring stem is also fine.
Wheel diameter 40mm.
Loaded capacity 20 kg.
Made of PU, PP and steel.
No bearing caster wheel.
Apply to many applications like shelves, food carts.
PU rigid casters are good to be the bed drawers' wheels, they are
short enougn to run under beds and work silent.
Product Specifications:
Plate Fixed/Rigid Type PU Drawer Casters
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025PUPF | 25x13 | 38 | 37x19 | 29 | 4 | / | 10 |
| I001C030PUPF | 30x13 | 40 | 37x19 | 29 | 5 | 15 |
| I001C040PUPF | 40x16.3 | 50.5 | 46x25 | 36x15 | 6 | 20 |
| I001C050PUPF | 50x20.3 | 65 | 58x38.5 | 45x25 | 6 | 30 |
| I001C065PUPF | 65x25 | 84 | 70x47 | 55x27 | 8 | 40 |
| I001C075PUPF | 75x25 | 93 | 70x47 | 55x27 | 8 | 50 |
Plate Swivel Type PU Casters
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025PUP | 25x13 | 38 | 39x33 | 30x24 | 4 | / | 10 |
| I001C030PUP | 30x13 | 40 | 39x33 | 30x24 | 5 | 15 |
| I001C040PUP | 40x16.3 | 50.5 | 46x38 | 36x28 | 6 | 20 |
| I001C050PUP | 50x20.3 | 65 | 58x46 | 46x35 | 6 | 30 |
| I001C065PUP | 65x25 | 84 | 70x58 | 53.5x40 | 8 | 40 |
| I001C075PUP | 75x25 | 93 | 70x58 | 53.5x40 | 8 | 50 |
Bolt Hole Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C050PUD | 50x20.3 | 65 | 8 | / | 30 |
| I001C065PUD | 65x25 | 84 | 8 | 40 |
| I001C075PPD | 75x25 | 93 | 10 | 50 |
Threaded Stem Type
| odel Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Threaded Stem Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C040PUT | 40x16.3 | 50.5 | 8x15 | / | 20 |
| I001C050PUT | 50x20.3 | 65 | 8x15 | 30 |
| I001C065PUT | 65x25 | 84 | 10x25 | 40 |
| I001C075PUT | 75x25 | 93 | 10x25 | 50 |
Bulk Casters Of Bed Drawer Wheels
Our Services:
FAQ:
Q: What is your delivery time?
A: Normally within 20 days. It also depends on the order quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance
will be cleared by T/T or L/C before delivery.
Q: The pu material caster is a bit expensive, do you have an
economical style?
A: Yes, the light duty pvc
casters is suitable, almost the similar performance.
Q: I need a light duty caster that can handle 30kg, what is your
suggestion?
A: This black pvc
caster should satisfy you.
