Wholesales Small Wheels Light Duty Swivel Plate Red PU Caster
Wheels For Shelves
Description:
Zinc plated bracket 2 inch plate swivel red pu light duty caster
wheel.
Mounting type includes top plate, bolt hole, threaded stem, stem
and grip ring stem is also fine.
Wheel diameter 50mm.
Loaded capacity 30 kg.
Made of PU, PP and steel.
No bearing caster wheel.
Apply to many applications like shelves, food carts.
Product Specifications:
Plate Swivel Type PU Casters
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025PUP | 25x13 | 38 | 39x33 | 30x24 | 4 | / | 10 |
| I001C030PUP | 30x13 | 40 | 39x33 | 30x24 | 5 | 15 |
| I001C040PUP | 40x16.3 | 50.5 | 46x38 | 36x28 | 6 | 20 |
| I001C050PUP | 50x20.3 | 65 | 58x46 | 46x35 | 6 | 30 |
| I001C065PUP | 65x25 | 84 | 70x58 | 53.5x40 | 8 | 40 |
| I001C075PUP | 75x25 | 93 | 70x58 | 53.5x40 | 8 | 50 |
Plate Fixed/Rigid Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025PUPF | 25x13 | 38 | 37x19 | 29 | 4 | / | 10 |
| I001C030PUPF | 30x13 | 40 | 37x19 | 29 | 5 | 15 |
| I001C040PUPF | 40x16.3 | 50.5 | 46x25 | 36x15 | 6 | 20 |
| I001C050PUPF | 50x20.3 | 65 | 58x38.5 | 45x25 | 6 | 30 |
| I001C065PUPF | 65x25 | 84 | 70x47 | 55x27 | 8 | 40 |
| I001C075PUPF | 75x25 | 93 | 70x47 | 55x27 | 8 | 50 |

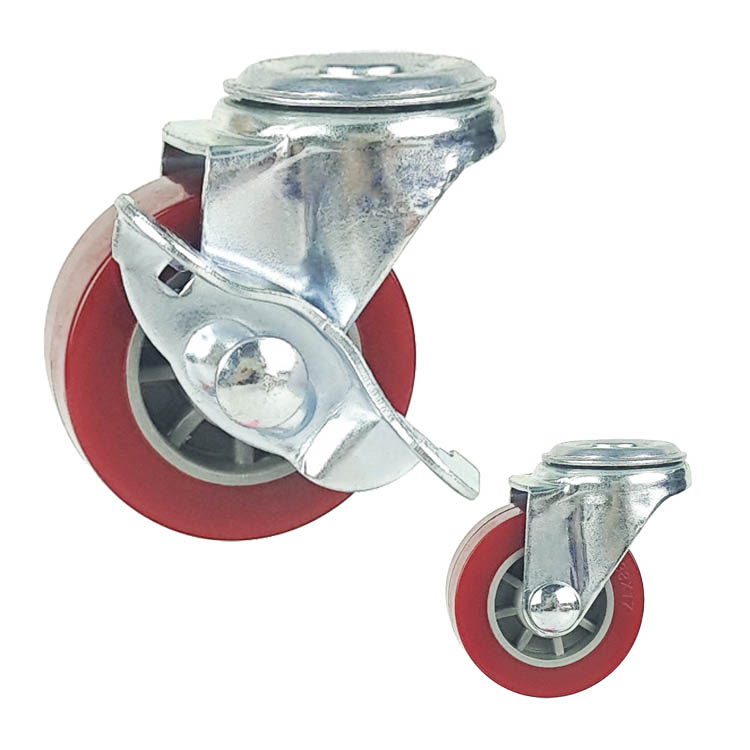

Bolt Hole Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C050PUD | 50x20.3 | 65 | 8 | / | 30 |
| I001C065PUD | 65x25 | 84 | 8 | 40 |
| I001C075PPD | 75x25 | 93 | 10 | 50 |
Threaded Stem Type
| odel Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Threaded Stem Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C040PUT | 40x16.3 | 50.5 | 8x15 | / | 20 |
| I001C050PUT | 50x20.3 | 65 | 8x15 | 30 |
| I001C065PUT | 65x25 | 84 | 10x25 | 40 |
| I001C075PUT | 75x25 | 93 | 10x25 | 50 |
Bulk Casters Of PU Wheels
Our Services:
FAQ:
Q: What is your delivery time?
A: Normally within 20 days. It also depends on the order quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance
will be cleared by T/T or L/C before delivery.
Q: The pu material caster is a bit expensive, do you have an
economical style?
A: Yes, the light duty pvc
casters is suitable, almost the similar performance.
Q: Can i customize my own brand? If i want to make a new type of
caster, is that possible?
A: Yes, my friend. You can print your brand logo on the packing
box, aslo can punching logo on the caster bracket, even produce
your new model of caster with our great professional experience. We
are good at doing the OEM things.
