Wholesales 100mm Soft Wheel Screw Fixed Rigid Plate Gray TPR Light
Duty Casters For Air Coolors
Description:

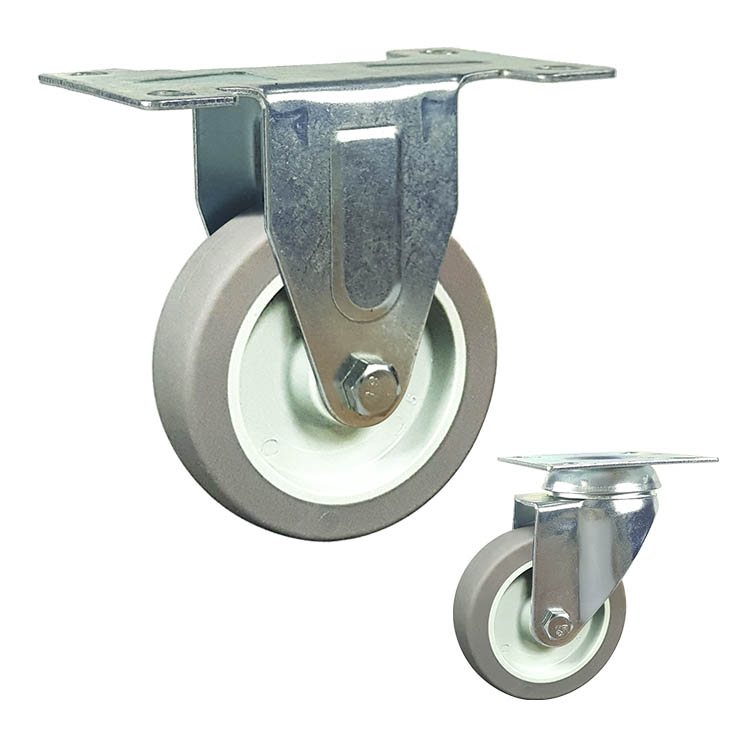

Here is the plate gray tpr light duty caster wheel with direction
bracket. This is the 4" type, it's mounting plate size is 100x57mm,
bolt hole spacing is 81x40mm. The plate shape is different from the
swivel type and swivel total brake type .
TPR matrial type wheel can protect floor well since they are soft
enough, and no marking. They are quite low noise at the same time.
Their mounting type including top plate, bolt hole, threaded stem,
stem and grip ring stem is also ok if necessary.
Usually used in furniture like air coolor and industrial fans.
Product Specifications:
Plate Fixed/Rigid Type TPR Soft Wheel Casters
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
LBS |
| I001D100TPRPF | 100x27 | 130 | 100x57 | 81x40 | 8.5 | Plain Bearing | 110 |
Plate Swivel Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
LBS |
| I001D100TPRP | 100x27 | 130 | 76x76 | 55x55 | 15x8.5 | Plain Bearing | 110 |
Bolt Hole Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
LBS |
| I001D100TPRD | 100x27 | 130 | 12.5 | Plain Bearing | 110 |
Threaded Stem Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Threaded Stem Size
MM | Bearing Type | Loaded Capacity
LBS |
| I001D100TPRT | 100x27 | 130 | 12x30 | Plain Bearing | 110 |
The Workshops:
FAQ:
Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer. Our factory has been
specializing in all kinds of caster wheels since 1997.
Q: Beside caster wheels, do you produce platform trolleys? My
client needs trolleys too.
A: Yes, we also make that too. You can check them by click the platform
trolleys
Q: What is your delivery time?
A: In general, within 20 days. It also depends on the order
quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PROFORMA INVOICE, and balance will be cleared by T/T or L/C before delivery.
Q: If i need this type of casters with stainless steel brakcet, can
you do that?
A: Yes, we are caster wheels manufacturer, that's available.
Q: I want to built a shop on Amazon, what can you offer me ?
A: That's fine, too. We are experienced on that. You can check the services.
