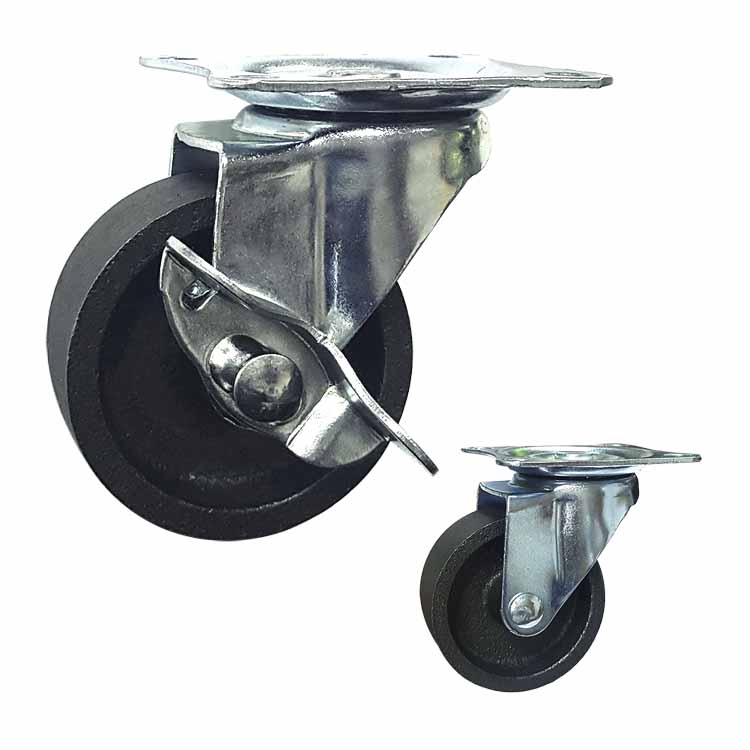

75mm rotating top plate cast iron side locking light duty casters
Description:
| Style | Light duty iron casters |
| Wheel Diameter | 3inch |
| Wheel Color | Iron |
| Wheel Material | Cast iron |
Light duty iron casters top plate type, can rotate 360 °,bolt hole, threaded stem, stem and
grip ring stem type is also fine.
Loaded capacity from 10 kg to 50 kg.
Made of Iron and steel.
Product Specifications:
Plate Swivel Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025CP | 25x13 | 38 | 39x33 | 30x24 | 4 | / | 10 |
| I001C030CP | 30x13 | 40 | 39x33 | 30x24 | 5 | 15 |
| I001C040CP | 40x16.3 | 50.5 | 46x38 | 36x28 | 6 | 20 |
| I001C050CP | 50x20.3 | 65 | 58x46 | 46x35 | 6 | 30 |
| I001C065CP | 65x25 | 84 | 70x58 | 53.5x40 | 8 | 40 |
| I001C075CP | 75x25 | 93 | 70x58 | 53.5x40 | 8 | 50 |
Plate Fixed/Rigid Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025CPF | 25x13 | 38 | 37x19 | 29 | 4 | / | 10 |
| I001C030CPF | 30x13 | 40 | 37x19 | 29 | 5 | 15 |
| I001C040CPF | 40x16.3 | 50.5 | 46x25 | 36x15 | 6 | 20 |
| I001C050CPF | 50x20.3 | 65 | 58x38.5 | 45x25 | 6 | 30 |
| I001C065CPF | 65x25 | 84 | 70x47 | 55x27 | 8 | 40 |
| I001C075CPF | 75x25 | 93 | 70x47 | 55x27 | 8 | 50 |
Bolt Hole Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C050CD | 50x20.3 | 65 | 8 | / | 30 |
| I001C065CD | 65x25 | 84 | 8 | 40 |
| I001C075CD | 75x25 | 93 | 10 | 50 |
Threaded Stem Type
| odel Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Threaded Stem Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C040CT | 40x16.3 | 50.5 | 8x15 | / | 20 |
| I001C050CT | 50x20.3 | 65 | 8x15 | 30 |
| I001C065CT | 65x25 | 84 | 10x25 | 40 |
| I001C075CT | 75x25 | 93 | 10x25 | 50 |
About Us:
FAQ:
Q: Are you manufacture or trading company?
A: We are manufacturer of caster wheels, so as plastic foldable
platform trolleys. We has been specializing in caster wheels since
1997.
Q: Where is your factory? Can I visit ?
A: Yangjiang, Guangdong. 2 hours by car from Guangzhou,You are
warmly welcome to visit whenever you are available.
Q: What is your delivery time?
A: In general, less than 20 days. It also depends on the order
quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance
will be cleared by T/T or L/C before delivery.
Q: Are samples available?
A: Yes, samples are available at any time, negotiable.
Q: Can i customize my own brand? If i want to make a new type of
caster, is that possible?
A: Yes, my friend. You can print your brand logo on the packing
box, aslo can punching logo on the caster bracket, even produce
your new model of caster with our great professional experience. We
are good at doing the OEM things.
Why Choose Us:
- One of the top 10 caster brands in China
- Manufacturing pricing
- Broad product lines, over 2000+ combinations
- Fastest delivery time, more than $15 Million in finished component
parts
- We deliver what we promise, quality without compromises
- Best customer supports and services
- Honesty and integrity
