65mm 77lbs top plate swivel white pp light duty caster wheels for
shelves
Description:

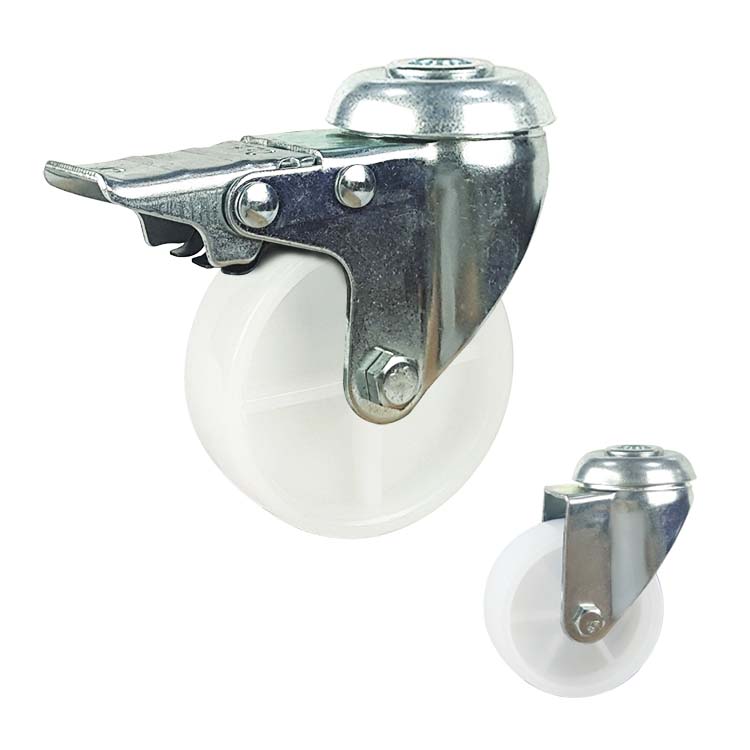

Light duty caster wheel made of plastic with plain bearing.
Including top plate, bolt hole, threaded stem, stem and grip ring
stem mounting type are ok if necessary.
Wheel diameter rage from 2 inch to 4 inch.
Classic total brake design.
Zinc plated bracket surface treatment.
Loaded capacity from 25 kg to 50 kg.
Usually used in many kind of machines.
Product Specifications:
Plate Swivel Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001D050PPP | 50x17 | 69 | 50x50 | 35x35 | 11x6.5 | Plain Bearing | 25 |
| I001D065PPP | 65x21 | 88 | 65x65 | 45x45 | 11x6.5 | 35 |
| I001D075PPP | 75x21 | 100 | 65x65 | 45x45 | 11x6.5 | 40 |
| I001D100PPP | 100x27 | 130 | 76x76 | 55x55 | 15x8.5 | 50 |
Plate Fixed/Rigid Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001D050PPPF | 50x17 | 69 | 65x48 | 52x33 | 8.5 | Plain Bearing | 25 |
| I001D065PPPF | 65x21 | 88 | 98x57 | 81x40 | 8.5 | 35 |
| I001D075PPPF | 75x21 | 100 | 98x57 | 81x40 | 8.5 | 40 |
| I001D100PPPF | 100x27 | 130 | 100x57 | 81x40 | 8.5 | 50 |
Bolt Hole Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001D050PPD | 50x17 | 69 | 10.5 | Plain Bearing | 25 |
| I001D065PPD | 65x21 | 88 | 10.5 | 35 |
| I001D075PPD | 75x21 | 100 | 12.5 | 40 |
| I001D100PPD | 100x27 | 130 | 12.5 | 50 |
Threaded Stem Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Threaded Stem Size
MM | Bearing Type | Loaded Capacity
KG |
| I001D050PPT | 50x17 | 69 | 10x25 | Plain Bearing | 25 |
| I001D065PPT | 65x21 | 88 | 10x25 | 35 |
| I001D075PPT | 75x21 | 100 | 12x30 | 40 |
| I001D100PPT | 100x27 | 130 | 12x30 | 50 |
About Us:
FAQ:
Q: Are you manufacture or trading company?
A: We are caster wheels manufacturer. Our factory has been
specializing in all kinds of caster wheels since 1997.
Q: Where is your factory? Can I visit ?
A: Our factory is in Yangjiang. 2 hours by car from Guangzhou,You
are welcome to visit whenever you are available.
Q: What is your delivery time?
A: In general, within 20 days. It also depends on the order
quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, the rest will
be cleared by T/T or L/C before delivery.
Q: Are samples available?
A: Yes, samples are available at any time, negotiable.
Q: Can i customize my own logo/brand? If i want to make a new type
of caster, is that possible?
A: Yes, my friend. You can print your brand logo on the packing
box, aslo can punching logo on the caster bracket, even produce
your new model of caster with our great professional experience. We
are good at doing the OEM things.
