50mm top plate swivel white plastic light duty casters pp material
for light weight objects
Description:

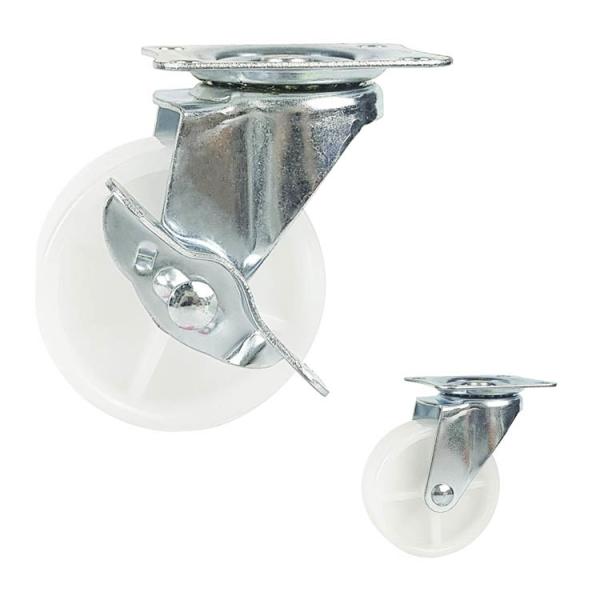

Zinc plated 2 inch swivel pp light duty caster wheel.
Mounting type including top plate, bolt hole, threaded stem, stem
and grip ring stem is also fine.
Wheel diameter rage from 25mm to 75mm.
Loaded capacity from 10 kg to 50 kg.
Made of PP and steel.
360 degree rotating construction.
Usually used in little shelves, small furnitures etc.
Product Specifications:
Plate Swivel Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025PPP | 25x13 | 38 | 39x33 | 30x24 | 4 | / | 10 |
| I001C030PPP | 30x13 | 40 | 39x33 | 30x24 | 5 | 15 |
| I001C040PPP | 40x16.3 | 50.5 | 46x38 | 36x28 | 6 | 20 |
| I001C050PPP | 50x20.3 | 65 | 58x46 | 46x35 | 6 | 30 |
| I001C065PPP | 65x25 | 84 | 70x58 | 53.5x40 | 8 | 40 |
| I001C075PPP | 75x25 | 93 | 70x58 | 53.5x40 | 8 | 50 |
Plate Fixed/Rigid Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025PPPF | 25x13 | 38 | 37x19 | 29 | 4 | / | 10 |
| I001C030PPPF | 30x13 | 40 | 37x19 | 29 | 5 | 15 |
| I001C040PPPF | 40x16.3 | 50.5 | 46x25 | 36x15 | 6 | 20 |
| I001C050PPPF | 50x20.3 | 65 | 58x38.5 | 45x25 | 6 | 30 |
| I001C065PPPF | 65x25 | 84 | 70x47 | 55x27 | 8 | 40 |
| I001C075PPPF | 75x25 | 93 | 70x47 | 55x27 | 8 | 50 |
Bolt Hole Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C050PPD | 50x20.3 | 65 | 8 | / | 30 |
| I001C065PPD | 65x25 | 84 | 8 | 40 |
| I001C075PPD | 75x25 | 93 | 10 | 50 |
Threaded Stem Type
| odel Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Threaded Stem Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C040PPT | 40x16.3 | 50.5 | 8x15 | / | 20 |
| I001C050PPT | 50x20.3 | 65 | 8x15 | 30 |
| I001C065PPT | 65x25 | 84 | 10x25 | 40 |
| I001C075PPT | 75x25 | 93 | 10x25 | 50 |
