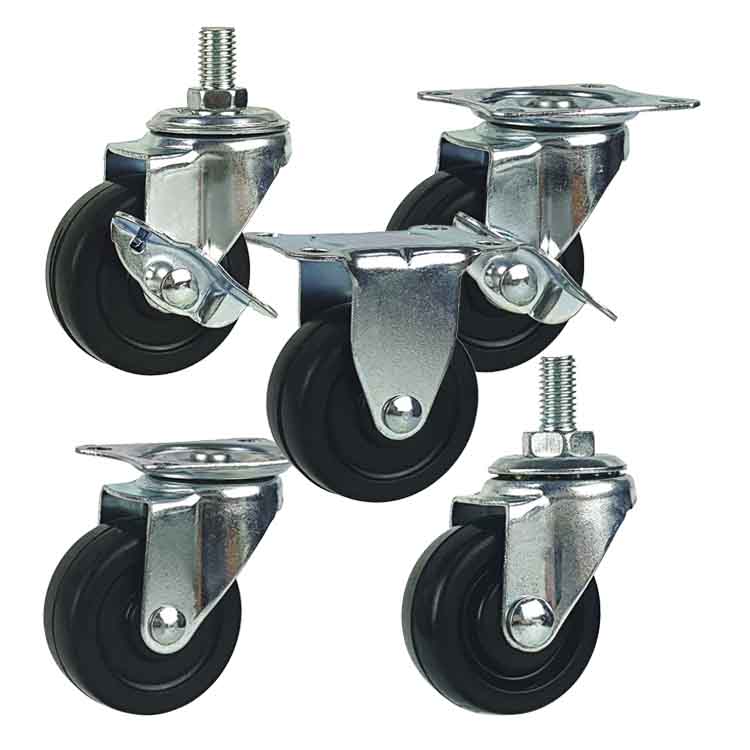

65mm diameter rotating plate black rubber light duty casters with
side brake
Description:
| Caster Style | Light duty rubber casters |
| Wheel Diameter | 2.5inch |
| Wheel Color | Black |
| Applications | A lot of furnitures etc |
| Material | Rubber |
| Bearing | No bearing |
| Brake | Side brake |
Bolt hole, threaded stem, stem and grip ring stem type is also
fine.
Loaded capacity from 10 kg to 50 kg.
Made of rubber and steel.
Product Specifications:
Plate Swivel Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025RP | 25x13 | 38 | 39x33 | 30x24 | 4 | / | 10 |
| I001C030RP | 30x13 | 40 | 39x33 | 30x24 | 5 | 15 |
| I001C040RP | 40x16.3 | 50.5 | 46x38 | 36x28 | 6 | 20 |
| I001C050RP | 50x20.3 | 65 | 58x46 | 46x35 | 6 | 30 |
| I001C065RP | 65x25 | 84 | 70x58 | 53.5x40 | 8 | 40 |
| I001C075RP | 75x25 | 93 | 70x58 | 53.5x40 | 8 | 50 |
Plate Fixed/Rigid Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Plate Size
MM | Bolt Hole Spacing
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C025RPF | 25x13 | 38 | 37x19 | 29 | 4 | / | 10 |
| I001C030RPF | 30x13 | 40 | 37x19 | 29 | 5 | 15 |
| I001C040RPF | 40x16.3 | 50.5 | 46x25 | 36x15 | 6 | 20 |
| I001C050RPF | 50x20.3 | 65 | 58x38.5 | 45x25 | 6 | 30 |
| I001C065RPF | 65x25 | 84 | 70x47 | 55x27 | 8 | 40 |
| I001C075RPF | 75x25 | 93 | 70x47 | 55x27 | 8 | 50 |
Bolt Hole Type
| Model Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Bolt Hole Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C050RD | 50x20.3 | 65 | 8 | / | 30 |
| I001C065RD | 65x25 | 84 | 8 | 40 |
| I001C075RD | 75x25 | 93 | 10 | 50 |
Threaded Stem Type
| odel Number | Wheel Diameter/Wideth
MM | Overall Height
MM | Threaded Stem Size
MM | Bearing Type | Loaded Capacity
KG |
| I001C040RT | 40x16.3 | 50.5 | 8x15 | / | 20 |
| I001C050RT | 50x20.3 | 65 | 8x15 | 30 |
| I001C065RT | 65x25 | 84 | 10x25 | 40 |
| I001C075RT | 75x25 | 93 | 10x25 | 50 |
Bulk Casters:
Normal Packaging:
About Us:
FAQ:
Q: Are you manufacture or trading company?
A: We are caster wheels manufacturer. We began to produce caster
wheels since 1997.
Q: Where is your factory? Can I visit ?
A: Factory is located in Yangjiang, Guangdong. Near to
Guangzhou,You are warmly welcome to visit whenever you are
available.
Q: What is your delivery time?
A: In general, within 20 days. It also depends on the order
quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance
will be cleared by T/T or L/C before delivery.
Q: Are samples available?
A: Yes, samples are available at any time, negotiable.
Q: Can i customize my own brand? If i want to make a new type of
caster, is that possible?
A: Yes, my friend. You can print your brand logo on the packing
box, aslo can punching logo on the caster bracket, even produce
your new model of caster with our great professional experience. We
are good at doing the OEM things.
