Brand Name : | WBD |
Model Number : | I019A120UP |
Certification : | ISO9001 |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 10000pcs per month |
Delivery Time : | 7-15days |

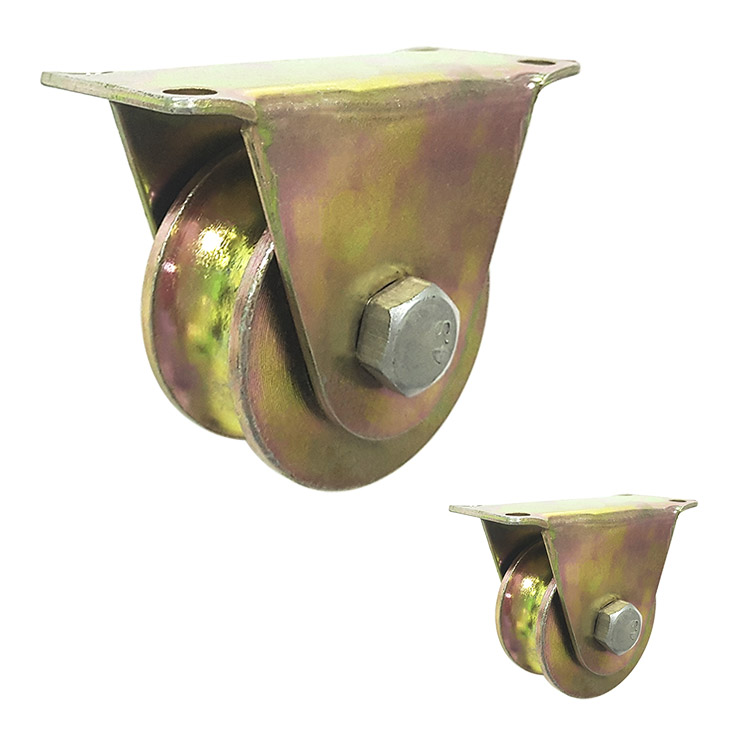

120mm 1320lbs plate track caster wheels color zinc U-groove wheels customize
Description:
1. U groove caster wheel.
2. Mounting type top plate fixed/rigid.
3. Wheel diameter 1.2 inch to 4.8 inch.
4. Loaded capacity from 220 lbs to 1320lbs.
5. Steel wheel and bracket, color zinc plated.
6. Suit for all kind of industrial applications that with H track.
Product Specifications:
Model Number | Wheel Diameter/Wideth MM | Overall Height MM | Plate Size MM | Bolt Hole Spacing MM | Bolt Hole Size MM | Loaded Capacity KG |
I019A032UP | 32x25 | 40 | 56x31 | 42x18 | 6 | 100 |
I019A050UP | 50x30 | 60 | 68x39 | 54x23 | 6 | 150 |
I019A060UP | 60x30 | 72 | 90x41 | 76x27 | 6 | 250 |
I019A080UP | 80x31 | 90 | 100x43 | 86x28 | 6 | 300 |
I019A100UP | 100x32 | 115 | 110x46 | 95x29 | 8 | 500 |
I019A120UP | 120x40 | 135 | 120x56 | 99x40 | 8 | 600 |
About Us:
FAQ:
Q: Are you manufacturer?
A: Yes, we are.
Q: Where is your factory? Can I visit ?
A: Yangjiang, Guangdong. 2 hours by car from Guangzhou,You are warmly welcome to visit whenever you are available.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.
Q: Are samples available?
A: Yes.
Q: Can i customize my own logo/brand? If i want to make a new type of caster, is that possible?
A: Yes, my friend.It is possible.
![]() |
