Brand Name : | WBD |
Model Number : | I008M075TPRPB |
Certification : | ISO9001 |
Price : | Negotiable |
Supply Ability : | 100000pcs per month |
Delivery Time : | 7-15days |

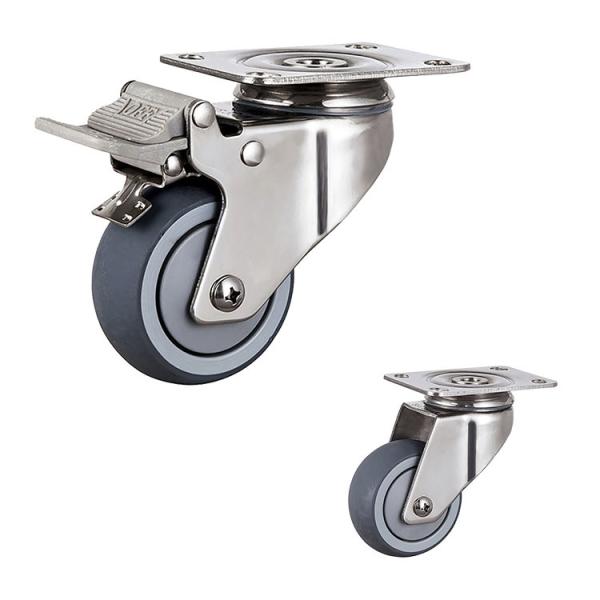

Soft Wheel 3inch Swivel Double Brake Stainless Steel TPR Caster Wheels
Bracket | 304 Stainless Steel |
Wheel | TPR On PP Core |
Mounting Type | Top plate/ Bolt hole/Threaded stem/Stem |
Wheel Size | 3inch |
Capacity | 80kg |
Advantage | Waterproof/Low noice |
Application | Medical Equipments |
Product Specifications:
Plate Type
Model Number | Wheel Diameter/Width MM | Overall Height MM | Plate Size MM | Bolt Hole Spacing MM | Bolt Hole Size MM | Bearing Type | Loaded Capacity KG |
I008M075TPRPB | 75x32 | 113 | 95x70 | 73.5x48.5 | 12.5x9 | Ball Bearing | 80 |
I008M100TPRPB | 100x32 | 137 | 95x70 | 73.5x48.5 | 12.5x9 | Ball Bearing | 110 |
I008M125TPRPB | 125x32 | 164 | 95x70 | 73.5x48.5 | 12.5x9 | Ball Bearing | 130 |
Bolt Hole Type
Model Number | Wheel Diameter/Width MM | Overall Height MM | Bolt Hole Size MM | Bearing Type | Loaded Capacity KG |
I008M075TPRDB | 75x32 | 113 | 12.5 | Ball Bearing | 80 |
I008M100TPRDB | 100x32 | 137 | 12.5 | Ball Bearing | 110 |
I008M125TPRDB | 125x32 | 164 | 12.5 | Ball Bearing | 130 |
About Us:
Certificates:
FAQ:
Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer. Our factory has been
specializing in all kinds of caster wheels since 1997.
Q: Where is your factory? Can I visit ?
A: Our factory is in Yangjiang. 2 hours by car from Guangzhou,You
are welcome to visit whenever you are available.
Q: What is your delivery time?
A: In general, within 20 days. It also depends on the order
quantity.
Q: What is the term of payment?
A: Payment terms: 30% of deposit upon signing the PI, the rest will
be cleared by T/T or L/C before delivery.
Q: Are samples available?
A: Yes.
Q: Can i customize my own logo/brand? If i want to make a new type
of caster, is that possible?
A: Of couse, my friend. You can print your brand logo on the
packing box, aslo can punching logo on the caster bracket, even
produce your new model of caster with our great professional
experience.
![]() |
