Brand Name : | WBD |
Model Number : | I002B100PUPF |
Certification : | ISO9001 |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union, D/P, D/A, |
Supply Ability : | 100000pcs per month |
Delivery Time : | 7-15days |

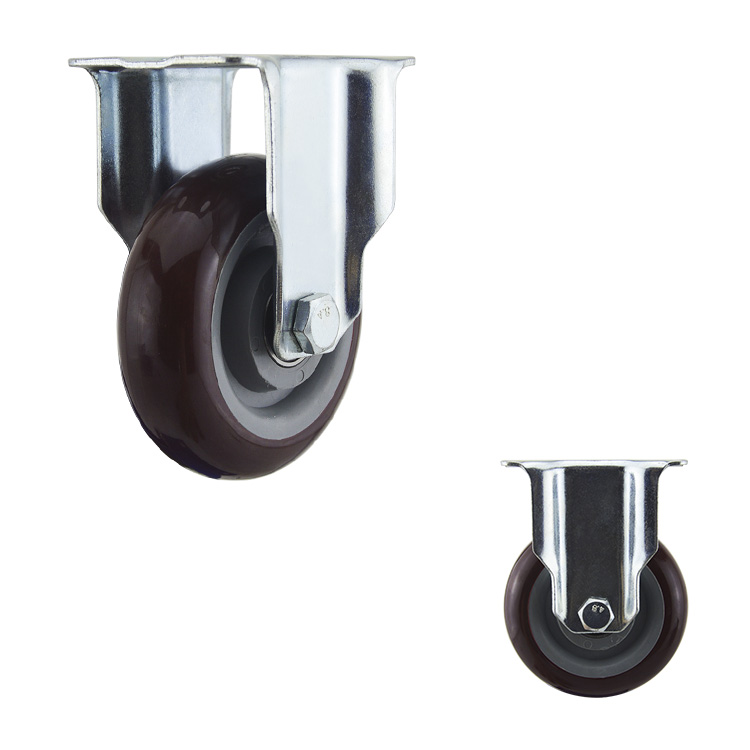

WBD 4" One Direction Rigid Jujube Polyuethane Medium Duty Casters
Customize
Description:
Medium duty caster | 100mm |
Fixed | 110kg capacity |
Dark red | Press steel bracket |
Polyuethane | Ball bearing |
Tread on wheel | For Transport Trolley, Service Carts etc |
Product Specifications:
Top Plate Fixed Type
Model Number: I002B100PUPF
Wheel Size: 100x32mm
Overall Height: 130mm
Plate Size: 93x62mm
Bolt Hole Spacing: 72x45mm
Bolt Hole Size: 12x8.5mm
Bearing Type: Ball Bearing
Loaded Capacity: 110kg
Top Plate Swivel SIde Brake Type
Model Number: I002B100PUPB1
Wheel Size: 100x32mm
Overall Height: 130mm
Plate Size: 93x62mm
Bolt Hole Spacing: 72x45mm
Bolt Hole Size: 12x8.5mm
Bearing Type: Ball Bearing
Loaded Capacity: 110kg
Top Plate Swivel Type
Model Number: I002B100PUP
Wheel Size: 100x32mm
Overall Height: 130mm
Plate Size: 93x62mm
Bolt Hole Spacing: 72x45mm
Bolt Hole Size: 12x8.5mm
Bearing Type: Ball Bearing
Loaded Capacity: 110kg
Other optional type: Total brake, threaded stem(swivel, swivel with
side brake, swivel with total brake)
Note: Wheel color, material, mounting type, thickness of bracket, color of forks etc, we can do the personality customize.
Package:
Normal package: Carton boxs
Other package: As your request
Packaging printing: As your request
